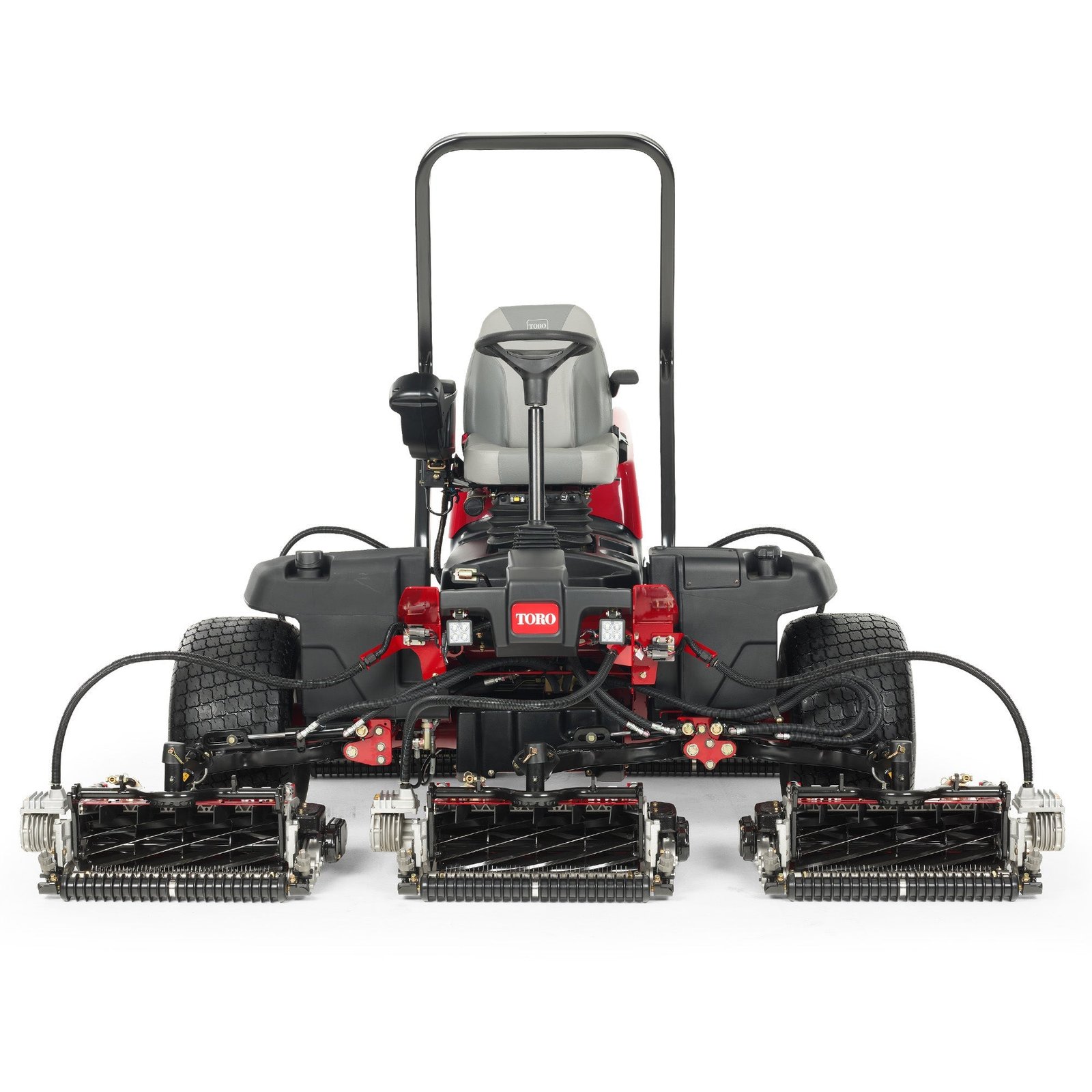

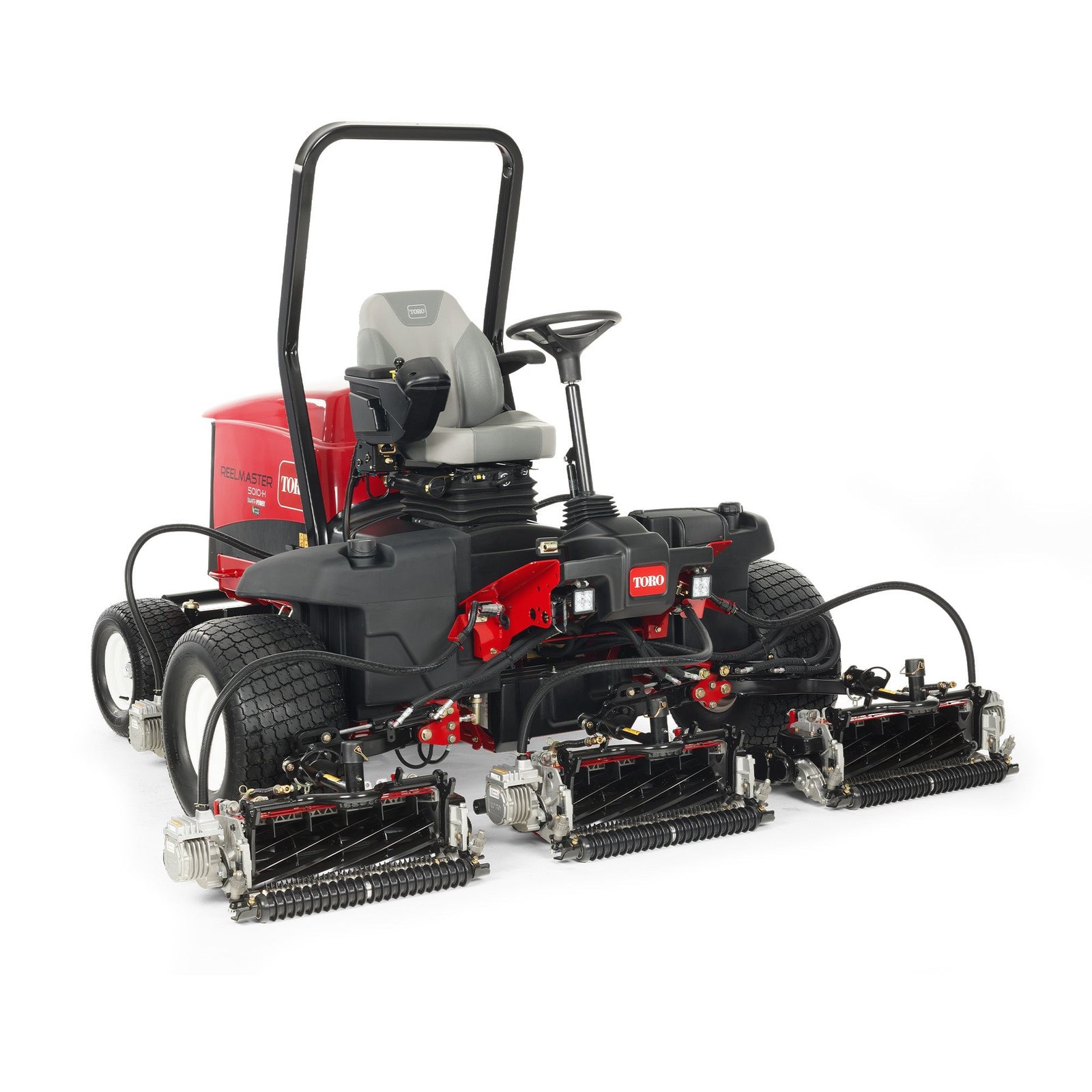

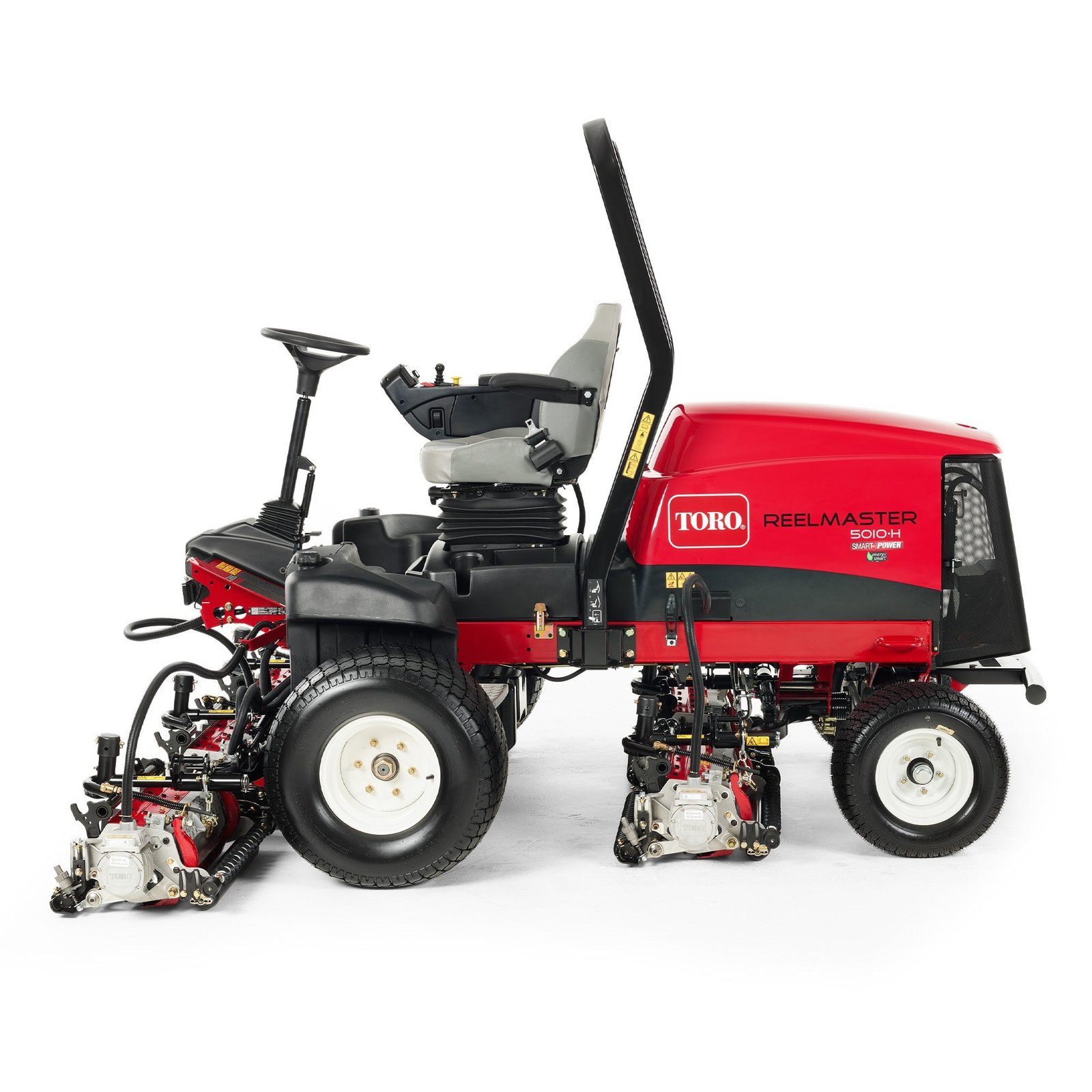

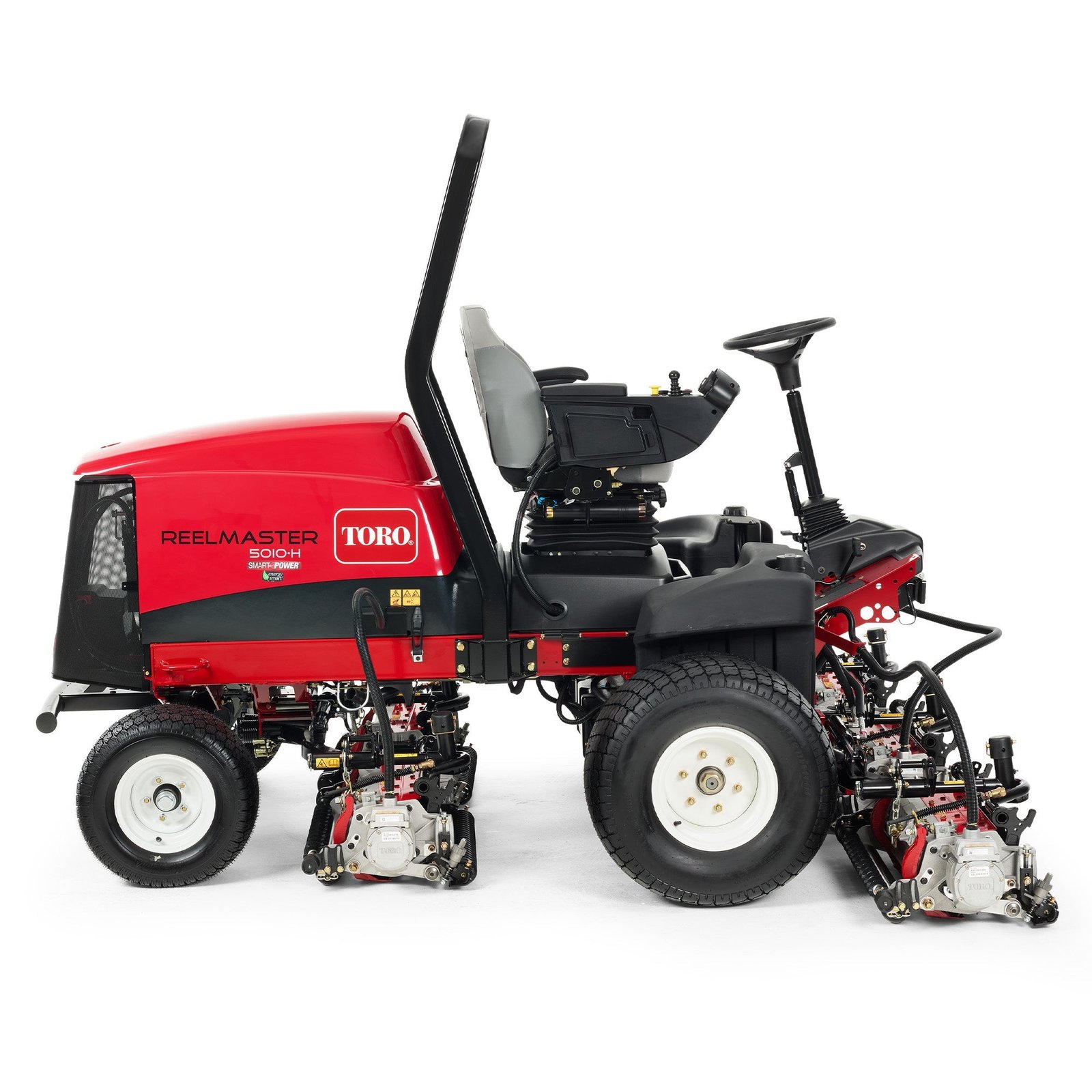

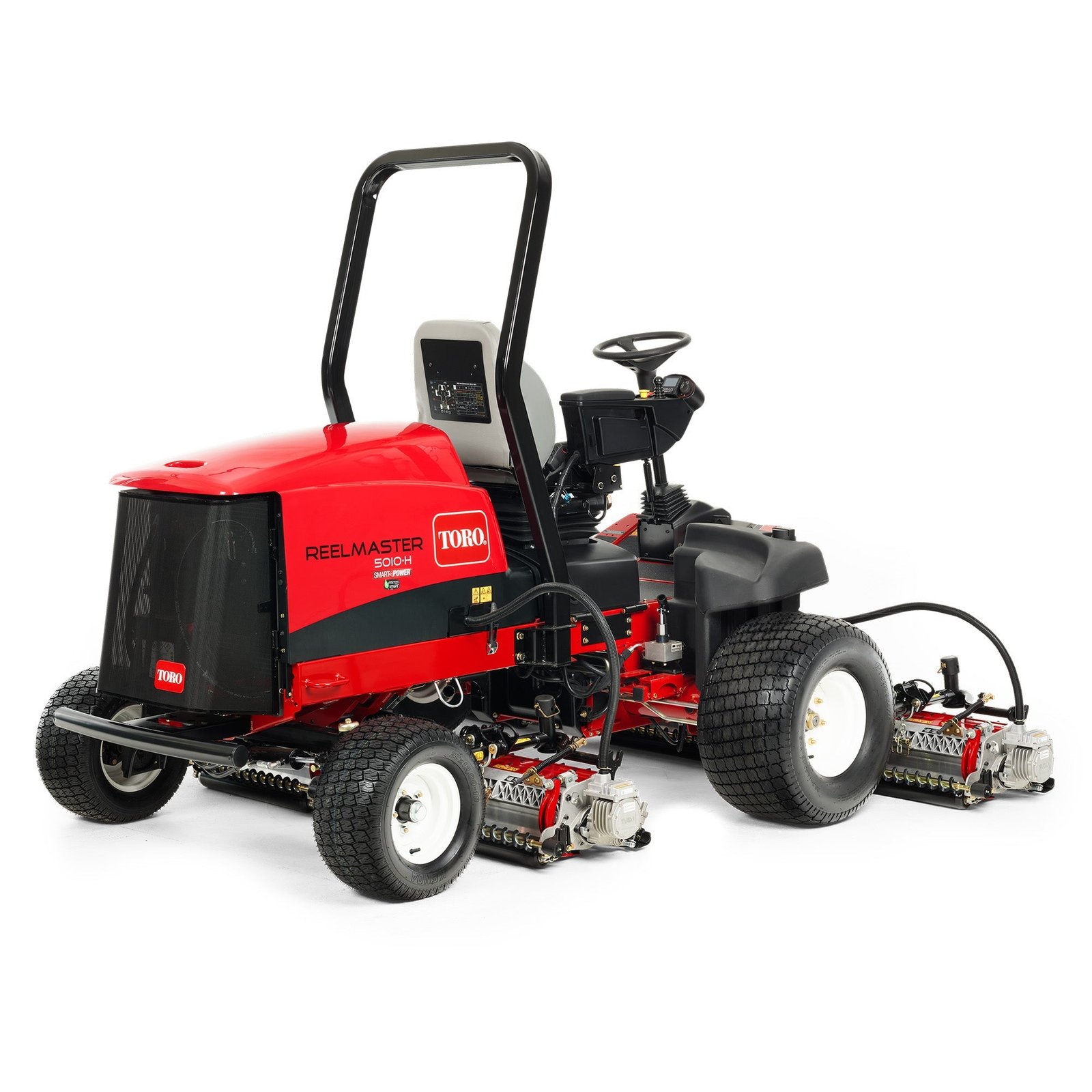

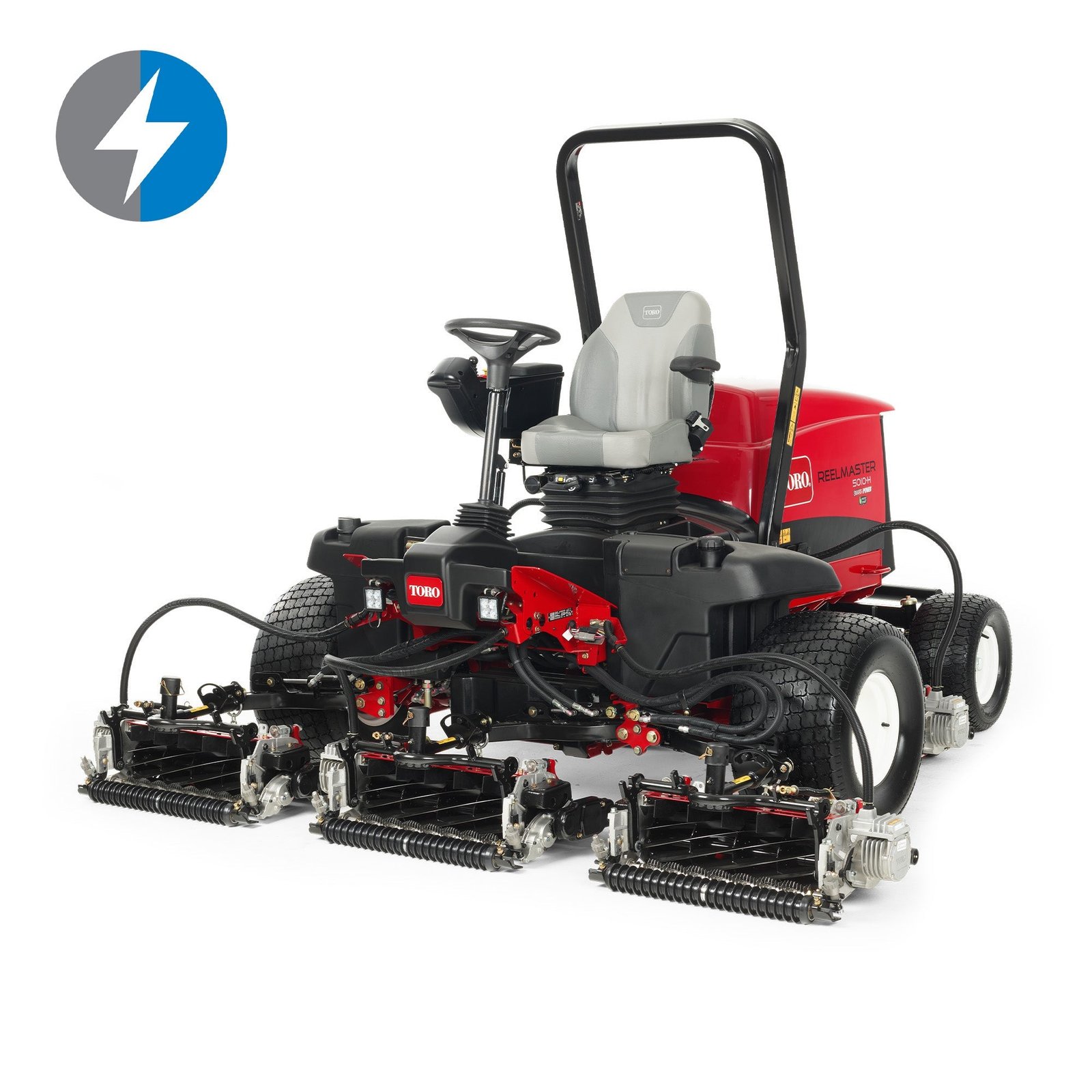

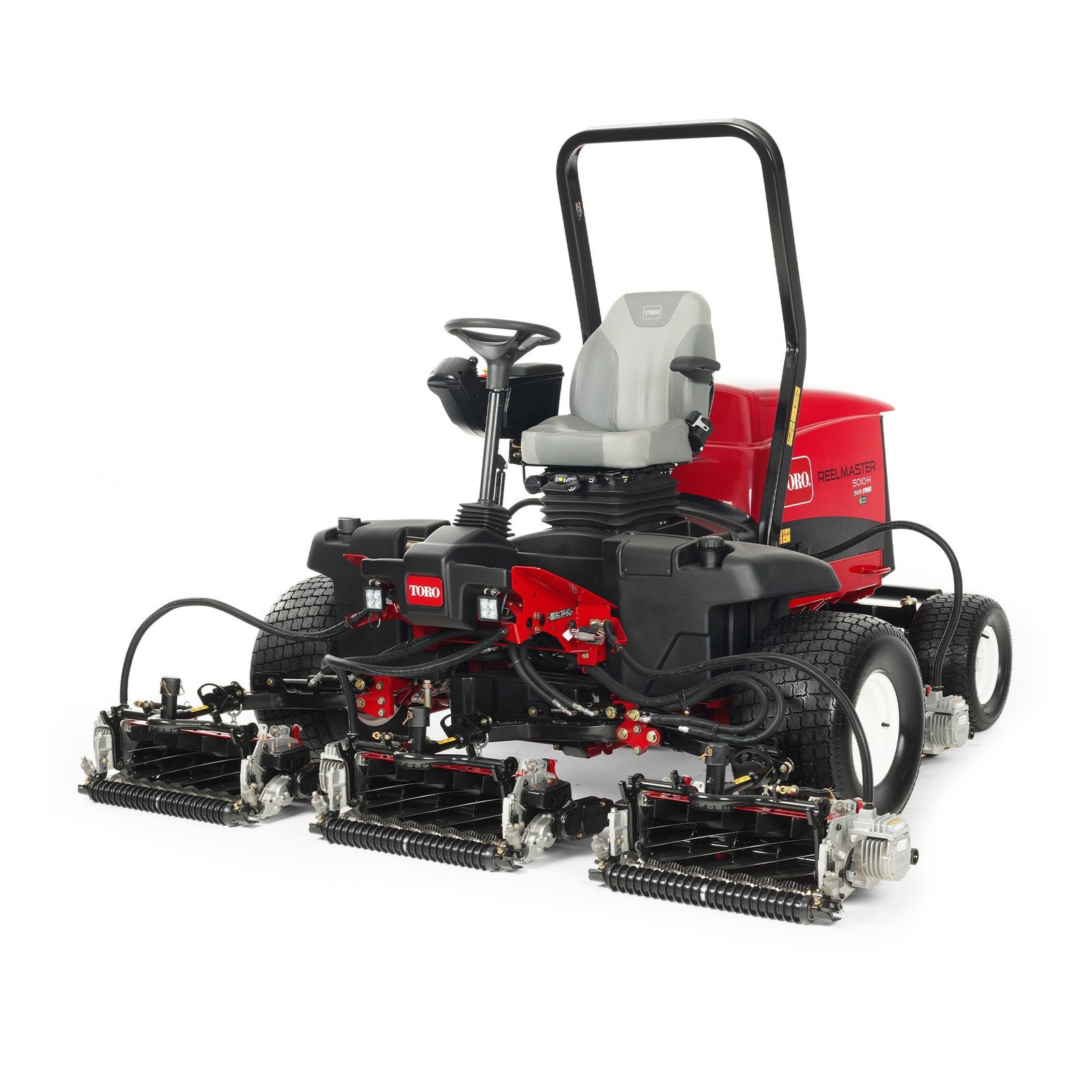

The Reelmaster® 5010-H is the industry’s first and only reel mower with a true hybrid drive system. The Reelmaster 5010-H utilizes a Kubota 22.9 hp (17.1 kW) diesel engine in concert with an in-line motor generator and a self-recharging 48-volt battery pack to provide seamless power to the vehicle and cutting units. The combination of these two power sources comprises Toro’s patented hybrid power delivery system called PowerMatch™. PowerMatch enables the Reelmaster 5010-H to match the power generated to the power required for all cutting conditions. The result is the availability of over 40 horsepower, but only when cutting conditions require it, which saves on average 20% fuel usage, improving operating costs, and the vehicle’s carbon footprint.= Hybrid Model
Armrests: Standard
Battery: 12V AGM
Bedknife Adjustment: Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
Blade Style/Type: Reel
Blade Type (Description): EdgeSeries™ DPA radial or forward swept reels
Clip Frequency/Backlapping: Electronically controlled, variable reel speed for optimal clip frequency and independently controlled backlap speed. Standard on-board backlapping.
Controls: Single foot-operated traction pedal, foot actuated mow speed limiter, foot actuated service and parking brake. Hand-operated key ignition switch, switch-operated throttle, isochronous engine speed control, cutting unit raise/lower joystick, cutting unit engage switch, and LED headlight switch, all positioned on right hand pivoting control console.
Cooling System Description: Rear mounted radiator with industrial tube and fin construction, 6 fins per inch, 5.5 quart (5.2 liter) system capacity.
Cup Holder: Standard
Cutting Unit Accessories: Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower: Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Type/Configuration: Five electrically driven, DPA cutting units with low-drag seal and bearing package. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.
Drivetrain: Hybrid
Electrical System: Heavy duty 12-volt battery, 570 CCA, 40 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Hybrid
Fuel Capacity: 14 U.S. gal. (53 L)
Fuel Filter: Replaceable spin-on fuel filter/water separator.
Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator, lift/lower indicator.
Ground Speed – Forward: 0 – 10 mph (0 – 16.1 km/h)
Ground Speed – Reverse: 0 – 4 mph (0 – 6.4 km/h)
Height: 63″ (160 cm) to seat, 85.5″ (217.2 cm) to ROPS
Height of Cut Range: 8-Blade:5″: 0.5″ – 1.5″ (13 mm -38 mm)7″: 0.5″ – 2.0″ (13 mm – 51 mm)11-Blade: 0.25″ – 0.75″ (6 mm -19 mm)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable: Yes
Interlocks: Traction pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.
Lighting: Standard
Main Frame/Chassis: High strength steel frame with welded construction.
Max Slope Angle: Refer to operator’s manual.
Mowing Speed: 0 – 8 mph (0 – 12.8 km/h)
Number of Blades: 11, 8
Oil Capacity: 3.5 U.S. qt. (3.3 L)
Oil Cooler Description: Pressurized lubrication system.
Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon), 2-post ROPS Extension Kit (with optional windshield, operator cooling fan, LED work lights, rotating amber beacon and safety and security cage)
Overall Width: 116″ (288.3 cm)
Parking/Service Brakes: Individual left and right drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system.
Power Steering: Yes
Power Train (Engine Description): Tier 4 compliant 22.9 (17.1 kW) Kubota® 3-cylinder, liquid-cooled, diesel engine. Peak torque: 49.6 lbs-ft @ 2200 RPM. Four 12V Absorbed Glass Mat (AGM), sealed,
maintenance-free lead carbon batteries.
Product Length: 111″ (281.9 cm)
Reel Diameter: 5 in. or 7 in. (12.7cm or 17.8cm)
Reel/Cylinder Drive: Electric
Rollers: Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and longer rear rollers available.
Safety/Operator Safety: 2-post ROPS and retractable seat belts standard
Seat: Deluxe high back suspension seat with fore, aft, height and weight adjustment.
Starting: Switch
Steering System Description: Rear wheel, power steering with an independent hydraulic pump and circuit.
Tires – Front: 26.5″ x 14″ – 12″, 4-ply, Turf Tire
Tires – Rear: 20″ x 12″ – 10″, 4-ply, Turf Tread
Tool Box: Standard
Traction Drive: Front-Wheel Drive
Traction Drive (System): Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors.
Transport Width: 92″ (233.7 cm)
Weight: With 5″ cutting units: 2WD – 2,776 lbs. (1,259 kg), 4WD – 2,827 lbs. (1,282 kg)
With 7″ cutting units: 2WD – 2,907 lbs. (1,319 kg), 4WD – 2,965 lbs. (1,345 kg)
Wheelbase: 60″ (152.4 cm)
Width of Cut: 100″ (254 cm)
