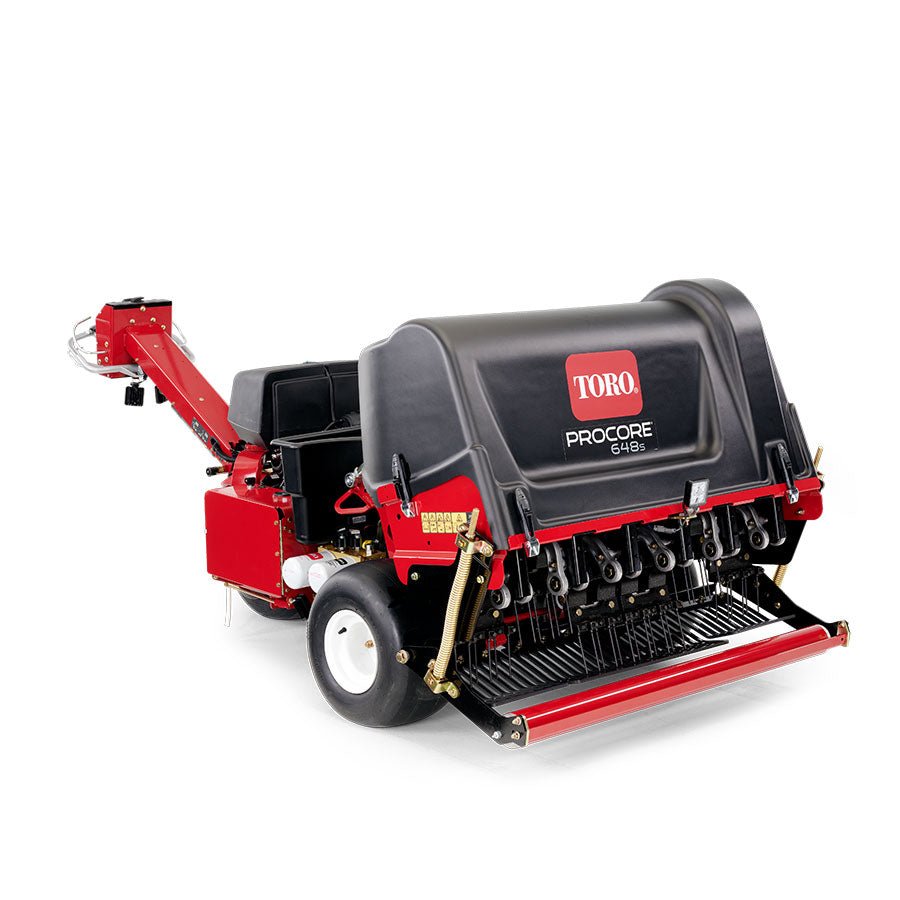

The ProCore 648s builds on the tremendous legacy of the ProCore 648 by incorporating proven technology and even more innovative features while preserving the time tested design elements that changed the way you aerate. Revised controls improve ergonomics and allow single handed operation. Hole spacing and true tine depth are now set and saved in the InfoCenter. The onboard controller is continuously monitoring key operating parameters to improve after aeration turf condition and allow the operator to easily target coring head drop and raise. A tighter turning radius with reduced wheel scrubbing and the ability to easily increase speed during turns increases productivity. Proven reliability,improved performance and exciting innovation – that’s what makes the ProCore 648s the new superior choice.
Aeration Type: Shallow
Brakes: Hydrostatic
Construction: Welded steel frame with cast crank and arm assembly.
Controls: Redundant operator presence bails, aeration start/stop bails and traction speed thumb wheels on handle. Tine length calibration, tine depth and forward hole
spacing set and saved in InfoCenter. Bump stop, delayed or immediate drop switch, cruise control on/set/off switch, aerate or transport switch and optional LED light
kit switch located on operator console. Ignition, tachometer on side console. Throttle and choke on engine.
Electrical System: 12-volt, 15 amp regulated charging alternator/generator. BCI Group No.: U1 battery, 300 cold cranking amps @ 0°F. Micro-processor logic control.
Engine: Kohler®, 2-cylinder, air-cooled, 23 hp (17.1 kW) gross, 19 hp (14.2 kW) net @ 3000 rpm, 41 cu-in. (674 cc) displacement. Dry, large capacity, replaceable element air filter. External spin-on oil filter, 2-quart (1.9-liter).
Fuel Capacity: 7.5 gallons (28.4 liter), gasoline.
Gauges/Instrumentation: InfoCenter™, tachometer.
Ground Clearance: 4.75″ (12.1 cm)
Height: Head Raised: 45″ (114.3 cm)
Head Lowered: 36.5″ (92.7 cm)
Handle Raised: 60.7” (153.0 cm)
Handle Lowered: 47.5” (119.7 cm
Hydraulic System: Remote spin-on filter. 3.0- gallon (13.2 liter) capacity, Toro PX Extended Life hydraulic fluid.
Interlocks: Operator presence, clutch latch, traction neutral, coring head raise/lower.Clutch latch, traction neutral, coring head raise/lower.
Length: Handle Down: 116.3” (293.1 cm) Handle Raised: 91.8” (231.3 cm)
Number of Tine Heads: 6
Operating Speed: Transport Speed:
Forward: 0-4.5mph (0-7.2km/h)
Reverse: 0-2mph (0-3.2km/h)
Aerating:
Forward: 0-2.5mph (0-4km/h)
Reverse: 0-2mph (0-3.2km/h)
Operating Width (Working Width): 50.12″ (127.3 cm)
Optional Accessories: LED Light Kit, Windrower Kit, Tire Scrapers, Rear Roller Kit, QuickChange® Tool
Tires: 20″ x 10″ – 10″, 2-ply, Smooth Tread
Track Width: 38.3″ (97.3 cm)
Traction Drive: Series-Parallel, closed loop, hydrostatic drive. 3WD, except it automatically switches to 2WD while in aeration mode and traveling in forward direction with coring head raised allowing a tighter turning radius. Electronically controlled variable displacement piston type pump. High-torque, low-speed wheel motor drive.
Weight: 1,642 lbs (744.7 kg)
Wheelbase: 44.5″ (113 cm)
Width: 50.12″ (127.3 cm)
