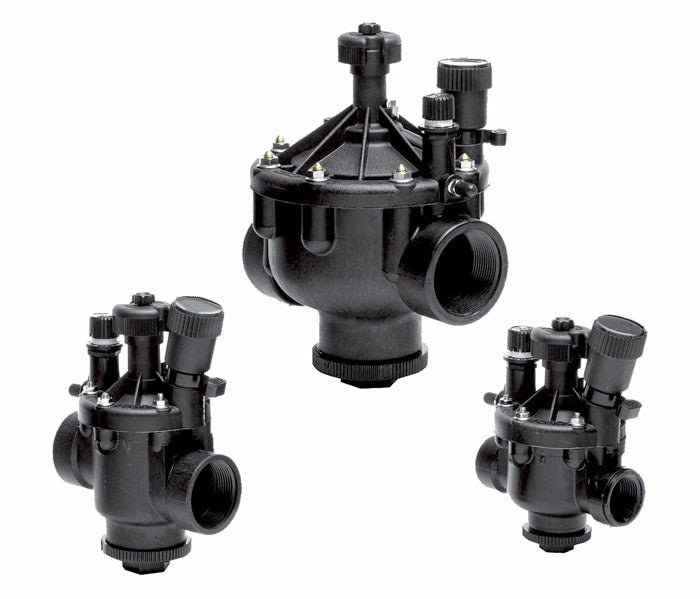

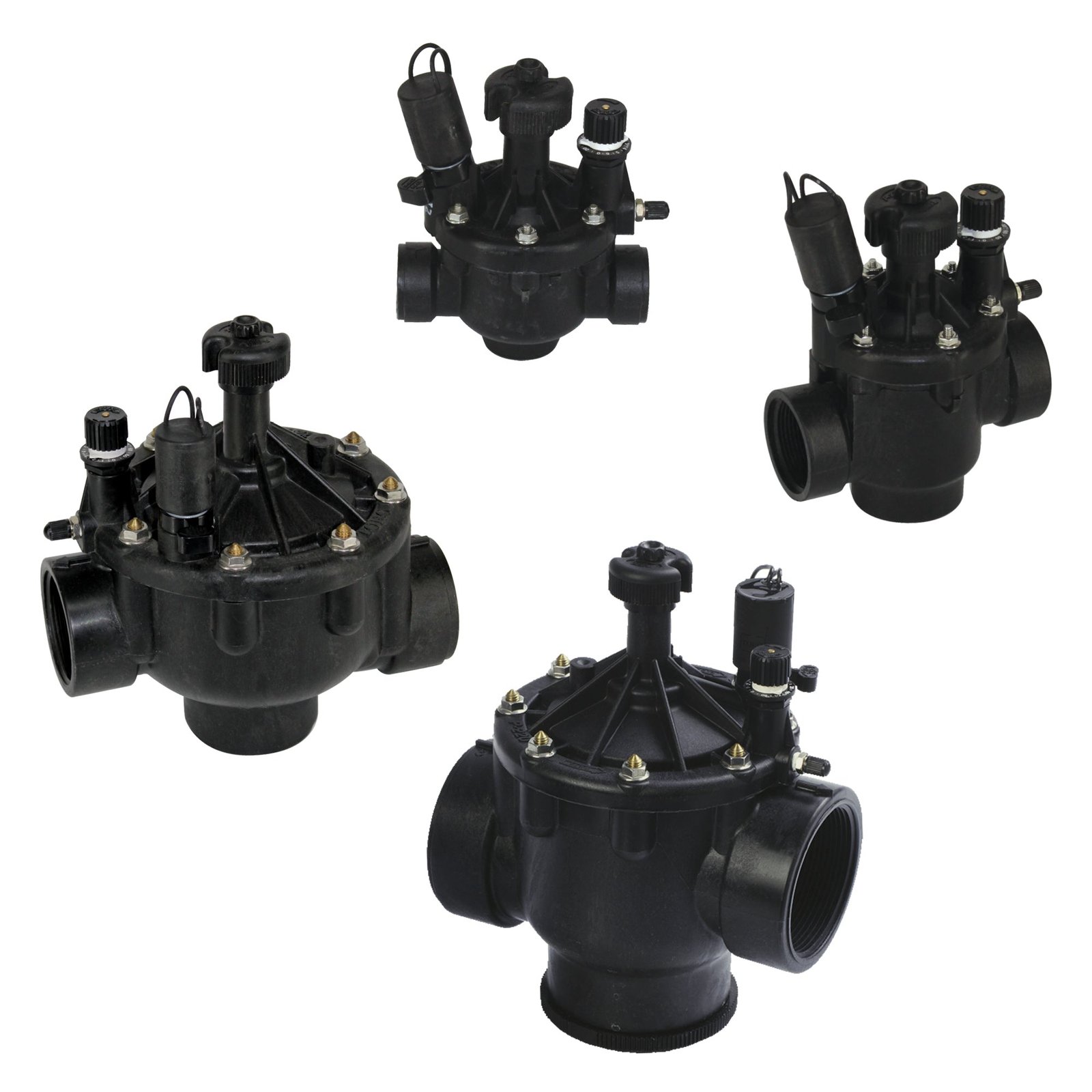

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi (15.2 BAR), but also have the ability to pressure regulate the flow through the valve anywhere from 5–100 psi (.3 – 6.9 BAR)
Burst Pressure Safety Rating: 750 psi (51,7 bar)
Constuction: Glass Filled Nylon
Dimensions: 1″ (25 mm): 6.75″ H x 3.625″ W (171mm x 92mm); 1.5″ (40 mm): 7.25″ H x 3.625″ W (184mm x 92mm); 2″ (50 mm): 9.5″ H x 6.125″ W (241mm x 156mm)
Flow: 1” (25mm): 5-40 gpm (19-151 lpm); 1.5″ (40mm): 30-100 gpm (114-379 lpm); 2″ (50mm): 80-180 gpm (303-681 lpm)
Holding: 60 Hz, 0.10 Amps
Minimum Pressure Diffrential: 10 psi (,7 bar)
Operating Pressure: 1” & 1.5” models (25mm & 40mm models) 10-220 psi (0,7-15,2 bar); 2” models (50mm models) 20-220 psi (1,4-15,2 bar) • Pressure Regulation: 5-100 psi (,34-6,89 bar)
Size: 1″ (25mm), 1.5″ (40mm), 2″ (50mm)
Solenoid: Spike Guard™: 24 VAC (50/60 Hz) Standard; DC latching – momentary low voltage pulse
