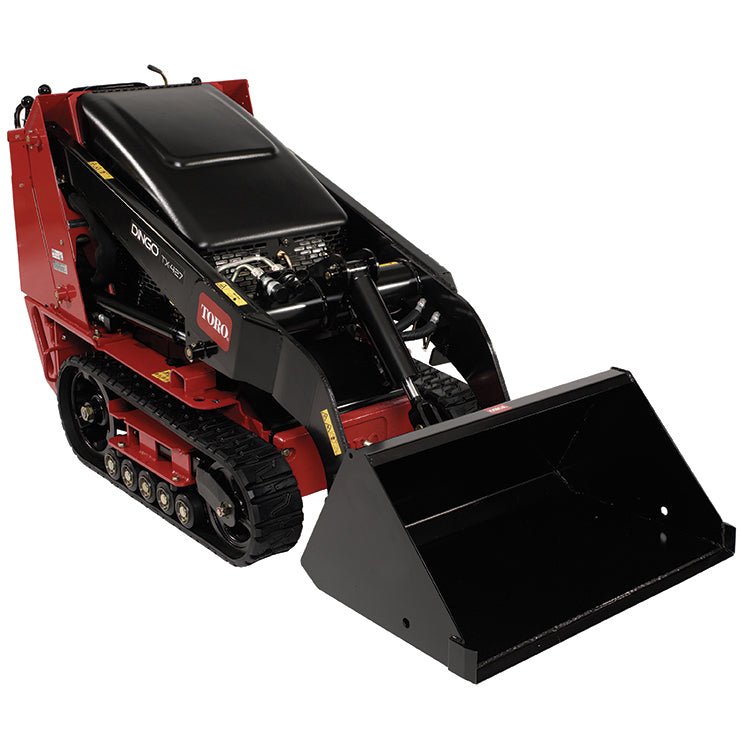

Handle compact construction and remodeling sites by moving through 36″ (91.4 cm) gates without a problem. This 35″ (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.
Capacity Heaped: 4.3 ft³ (0.12 m³)
Capacity SAE Struck: 3.5 ft³ (0.10 m³)
Construction: Fabricated, welded steel frame
Height: 25 in. / 63.5 cm
Length: 27 in. / 68.5 cm
Models: Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers: Dripless, flush face quick couplers
Weight: 153 lbs / 69.4 kg
Width: 35 in. / 88.9 cm
