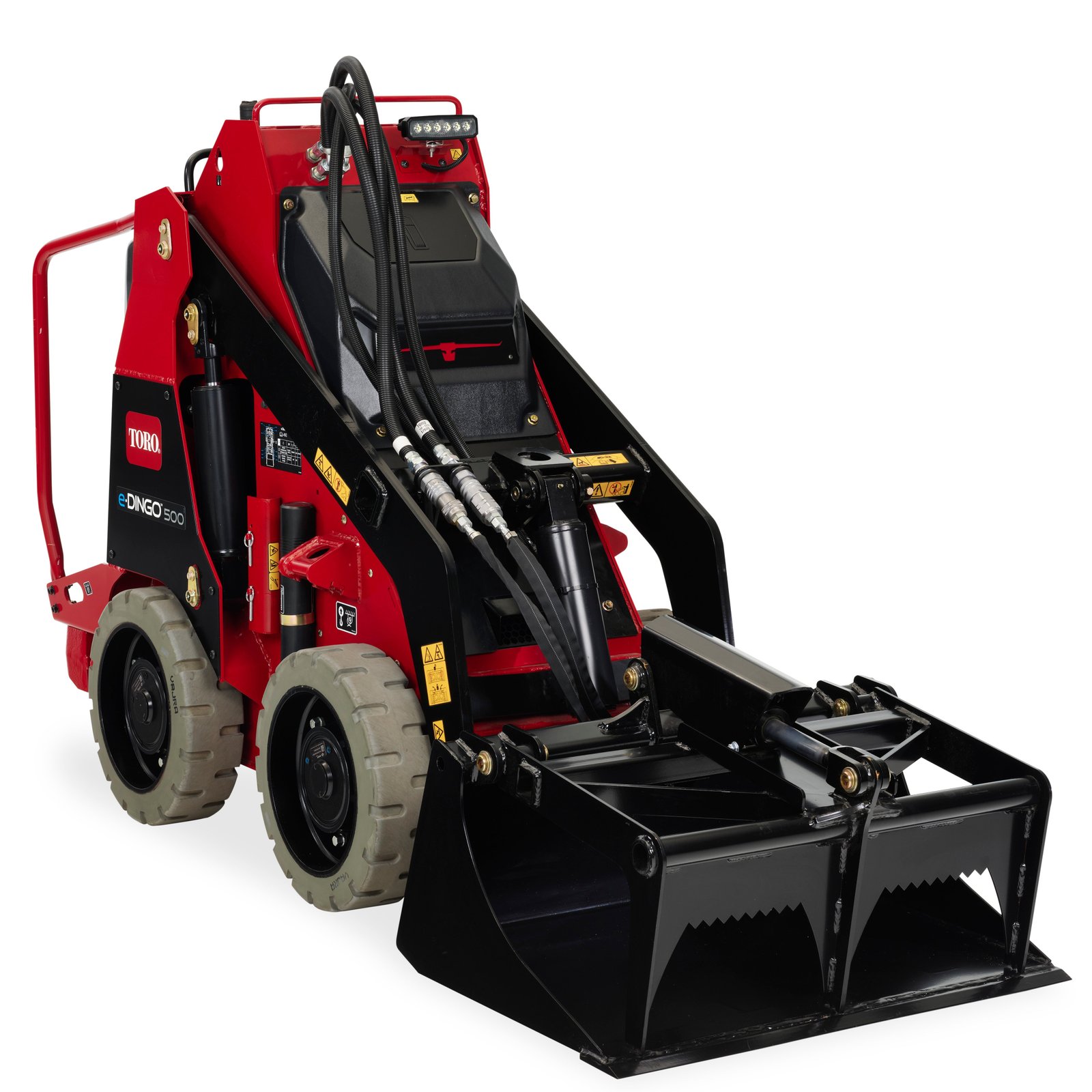

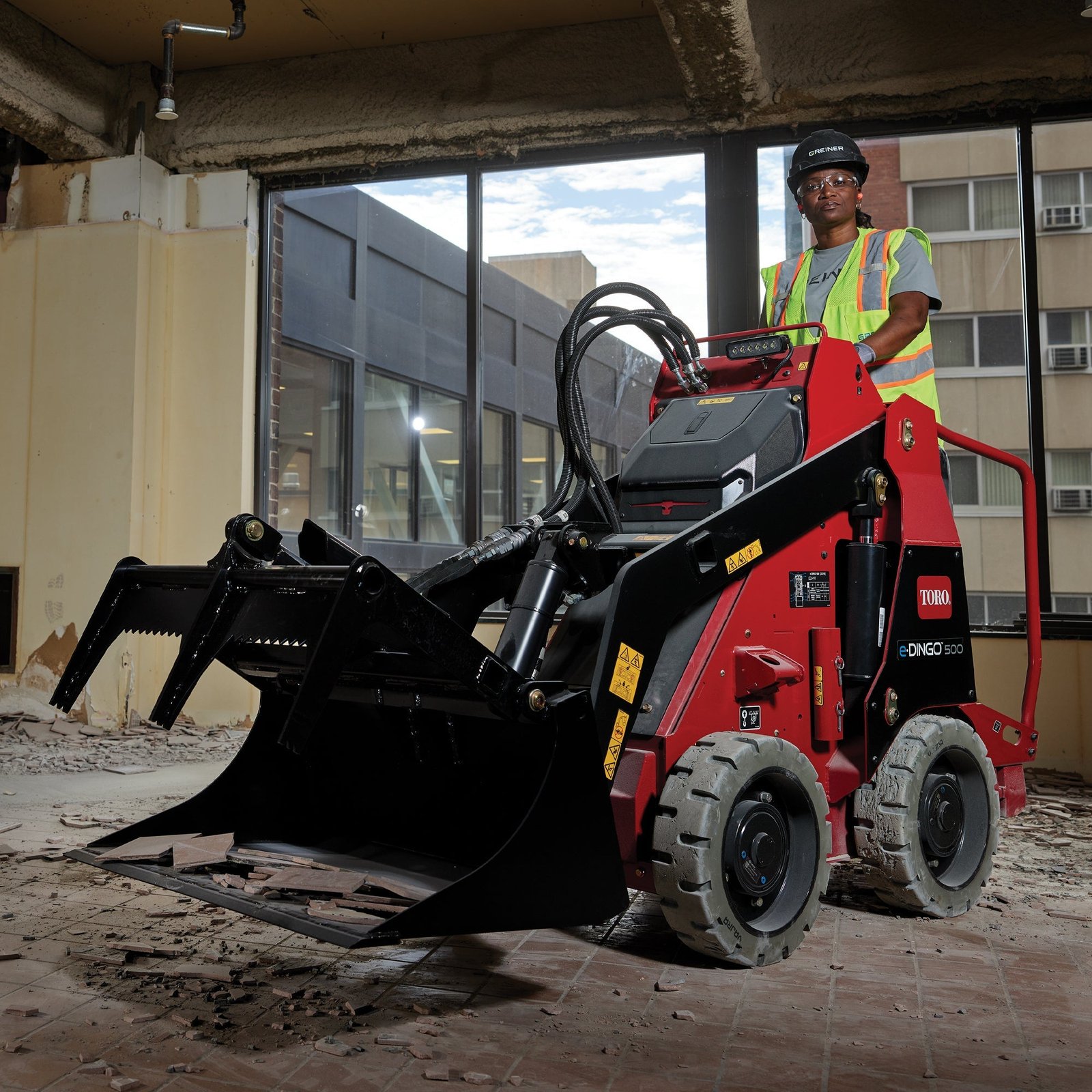

Toro is introducing the next generation in electric compact utility loaders: the Toro eDingo 500. Exceptional runtime in a compact design allows the eDingo to fit in the tightest spaces and tackle the toughest of jobs. Ideal for indoor construction and demolition, the eDingo 500 is powered by the HyperCell® Power System, a battery technology developed by Toro to match the power of traditional internal combustion powered products yet have zero exhaust emissions and less noise. The eDingo is optimized to deliver up to an eight-hour continuous runtime, while maintaining a 515lb ROC allowing it to complete more jobs with less hassle.
Battery Capacity: 13.57 kW
Battery Charging Requirements: 15 amps at 120V
Battery Chemistry: Toro HyperCell Lithium Ion
Dump Angle: 38 deg
Dump Height: 61 in. / 154.9 cm
Fuel Type: Electric
Ground Clearance: 4.25 in. / 10.8 cm
Ground Speed – Forward: Up to 2.75 mph / 4.43 km/h
Ground Speed – Reverse: Up to 2.75 mph / 4.43 km/h
Height: 54.25 in. 137.8 cm
Height – With Bucket: 54.25 in. 137.8 cm
Hinge Pin Height: 81 in. / 205.7 cm
Hydraulic Flow – Traction: 6.5 GPM (24.6 LPM)
Hydraulic Pressure: 3,250 PSI
Length: 66.25 in. / 168.2 cm
Length – With Bucket: 88 in. / 223.5 cm
Loader Arms: Radial
Max Operating Height: 106 in. / 269.2 cm
Rated Operating Capacity*: 515 lbs / 233.6 kg
Reach – Fully Raised: 21.5 in. / 54.6 cm
Reservoir Capacity: 6 gal. / 22.7 L
Standard Wheels: Non-marking
Tip Capacity: 1,251 lbs / 567 kg
Weight: 2,342 lbs / 1,062 kg
Wheelbase: 28 in. / 71.1 cm
Width: 30 in. / 76.2 cm
Width – With Bucket: 41.8 in. / 106.2 cm
